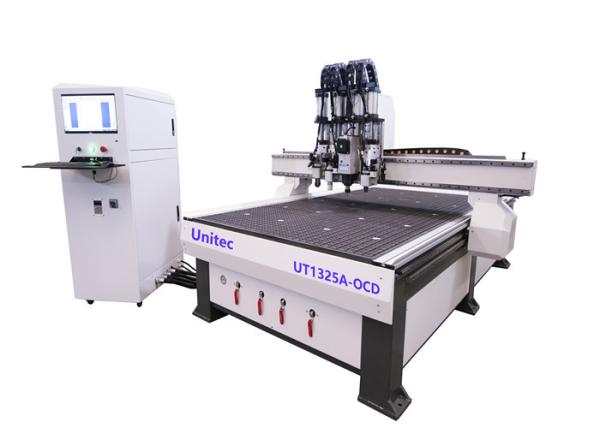

UT1325A-OCD 1325 Cnc Router signmaking for Foam corrugated KT board
1. 5.6KW ELTE Air cooling spindle(optional HQD or HSD spindle), high precision, long life time, steady working, easy to start up.
2. Thicken square pipe structure, well welded,no distortion for whole structure.
3. Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.

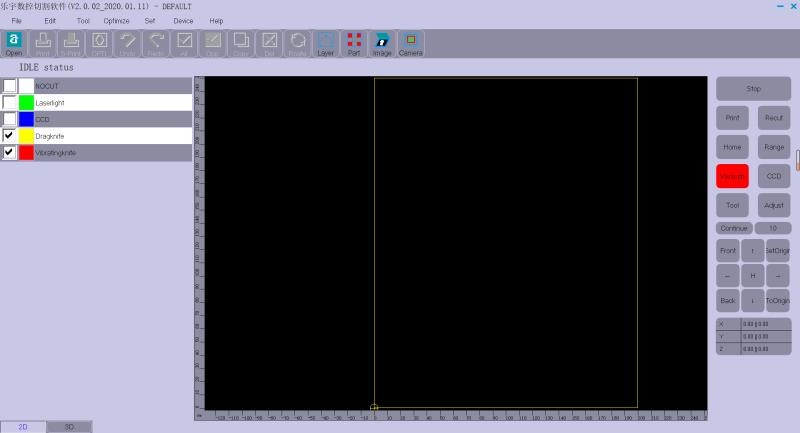

4. Leyu controller system with USB interface, working without connecting with computer during working and easy to control.
5. This machine can engrave any design,support scanners,direct support ,Art CAM,Type3,Wen tai,carving and many other G-code format generated by CAD/CAM
6. Adopt high speed step motor Max speed is 20M/MIN.
7. Dust collector (contain dust collector pump and dust collector pipes), for sucking away the dusts, such as wood dusks and so on
| XYZ Travel Size | 1300 X 2500 X 220mm |
| Max Working Size | 1300 X 2500 X 220mm |
| Table Size | 1300 X 2600mm |
| Transmission Type | XY/Z XY rack/ Z ball screw |
| Guide Rail | Linear Guide |
| Table Type | vacuum |
| Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump |
| Spindle Power | 5.6KW Italy Elte Spindle or China Spindle |
| Knife System | Oscillating + Creasing + Drag Knife + CCD camera |
| Spindle Speed | 18000rpm |
| Max Travel Speed | 40000mm/min |
| Max Work Speed | 25000mm/min |
| Motor | Easy Servo otor |
| Work Voltage | AC380V 50HZ |
| Controller System | China Leyu Or Taiwan Syntec |
| Processing Accuracy | 0.05mm |
| Repeat Positioning Accuracy | 0.01mm |
| File Format | G/PLT G code or PLT |
| Overall Weight | 1500KG |
| Overall Dimension | 2300 X 3200 X 1900mm |
Features:
1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.
make these model machine working very stable and more durable.
2. Iron casting table body insure machine movement of working more stable and low noisy.
3. mach3 controller with usb port. you can use your laptop to control machine
Application:
Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.
Suitable for Materials:
Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.
